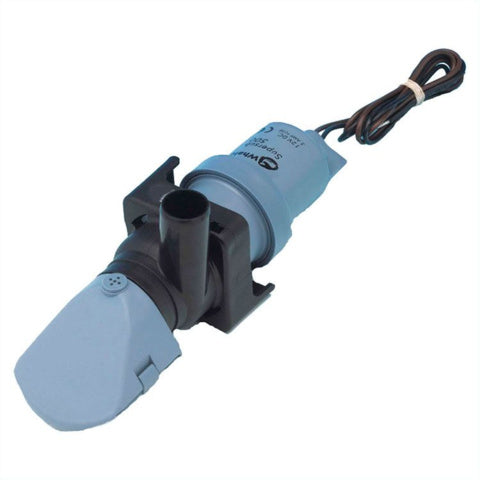

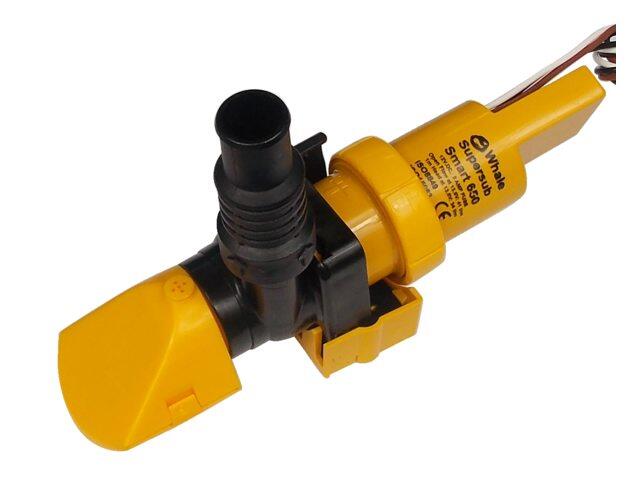

SUPERSUB FAMILY

Slim low profile submersible pump now higher capacity models.

Designed for use with separate bilge switch.

Low profile electric bilge pump designed for narrow bilge spaces.
Supersubs fit deep into small / awkward helm spaces where other pumps can't reach.

Features and benefits:

Low narrow design for tight bilge spaces
Easy installation - outlet and pump housing rotate to fit your installation
High performance
Efficient operation - very low power consumption
Easy to clean - installation with snap lock
Low profile filter - leaves the sump almost dry
Drains down to 9mm (1/3")
Tip: It is important to ensure that a vacuum breaker is built into the system.

Approvals and standards:

Complies with ISO 8849 and ISO 15083
Flameproof to ABYC and USCG standards.
EMC compliant
NMMA type accepted
CE certified
Accessories (purchased separately):

Electric bilge switches W-BE9003

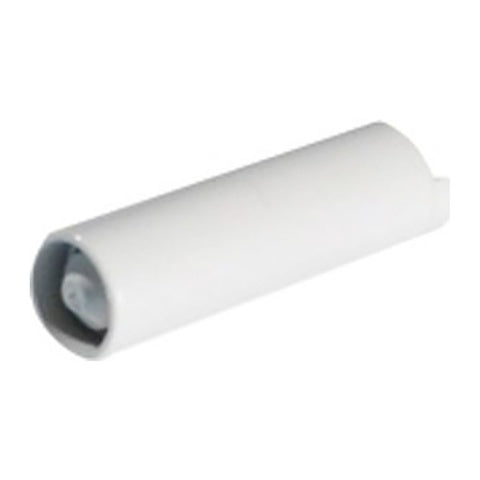

W-BE9006 Check valve W-LV1219
Flow Rate Description
1892 LPH (500 US GPH) / 31.6 LPM (8 US GPM)
Flow Rate 1 Meter Head
1514 LPH (400 US GPH) / 25 LPM (6 US GPM)
Automatic Bilge Pumps
No
Flow Rate 2 Meters Head
925 LPH (244 US GPH) / 15.4 LPM (4 US GPM)
Hose Size
19mm / 3/4"
Replace
504225
Fire
Whale
Model
SS5012
Voltage Description
12V DC
Amp Description
2.4A
Fuse
5A
Approvals
ISO8849 Marine (Bilge Pump) Standards, ISO15083 Marine (Bilge Pumping Systems) Standards, Ignition Protected AYBC & USCG Standards, CE Certified 89/336/EEC EMC Compliant
Height Description
54mm (2-1/8")
Width
183mm (7-3/16")
Depth
75mm (2-15/16")
Country of Origin
United Kingdom
Warranty
3 Years
