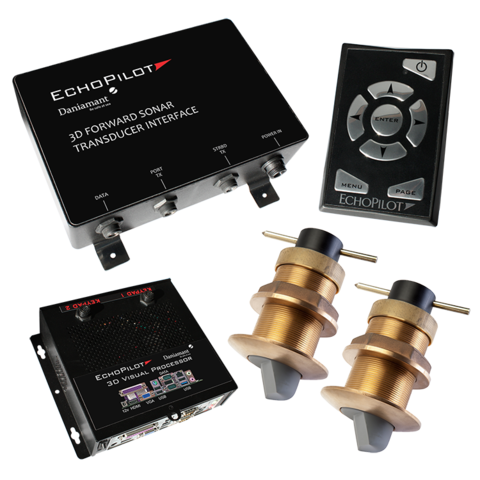

EchoPilot 3D displays a three-dimensional presentation of the underwater scene in front of the boat.
Seabed terrain and potential hazards are displayed in unparalleled detail. EP3D shows a real-time sonar image of what is actually in front of the boat, not a diagram rendered in 3D.

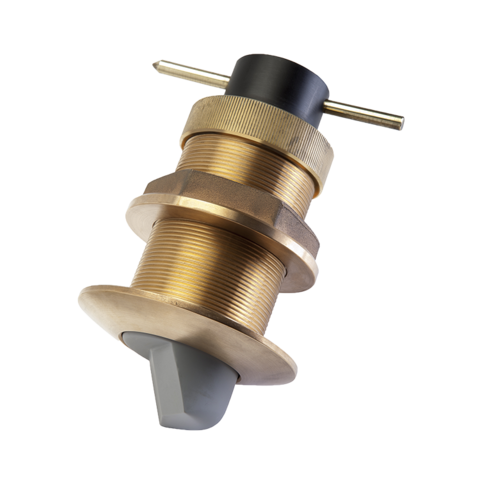

Two retractable transducers ensure complete forward coverage regardless of hull shape. The view is 60 degrees in the horizontal plane and over 90 degrees in the vertical plane and the forward range is up to 200 m.
The screen refreshes every 1 to 2 seconds depending on the range setting.

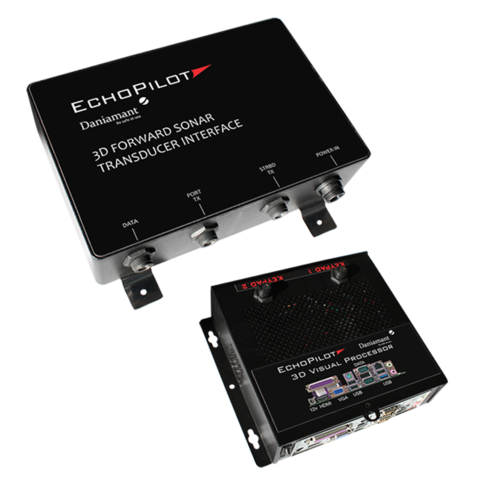

"Black-Box" solution with HDMI and VGA (S- and Composite video and DVI output) for a full color image on a wide range of compatible screens.
Features:
• 5" and 10" transducers and bushings available
• Real-time display
• Screen updates every 1 to 2 seconds (depending on range)
• 200m forward range
• 100m depth range
• 200KHz frequency
• Double retractable transducers
• More screen settings
• Outputs: HDMI, VGA
• Optional output: S- and Composite Video and DVI with converter
• Color coded depths
• Multiple display view points
• Ethernet transducer connection (allows data cable up to 150m)
• Width on width 90 degrees (vertical plane)
• Width of width 60 degrees (horizontal plane)
• 12 or 24v operation
Contact us for prices. The price here is for
EP-FLS3D-5B
