Description
GET A SHARPER VIEW FROM YOUR CONNECTED DRIVER
With its slim design, powerful processor and upgraded IPS screen, this advanced 7″, 9″, 12″ or 16″ chartplotter integrates perfectly into your Garmin marine system.
Easy to integrate with multiple engines.
You can easily build your marine system using our advanced network connection.
Support for Garmin Navionics+ ™ and premium Garmin Navionics Vision+ ™ Map
See below your boat with built-in sonar capabilities (only available on xsv models.)
Manage your marine experience almost anywhere 1 .
See the world below you.
ULTRA HIGH DEFINITION SCANNING SOUNDER

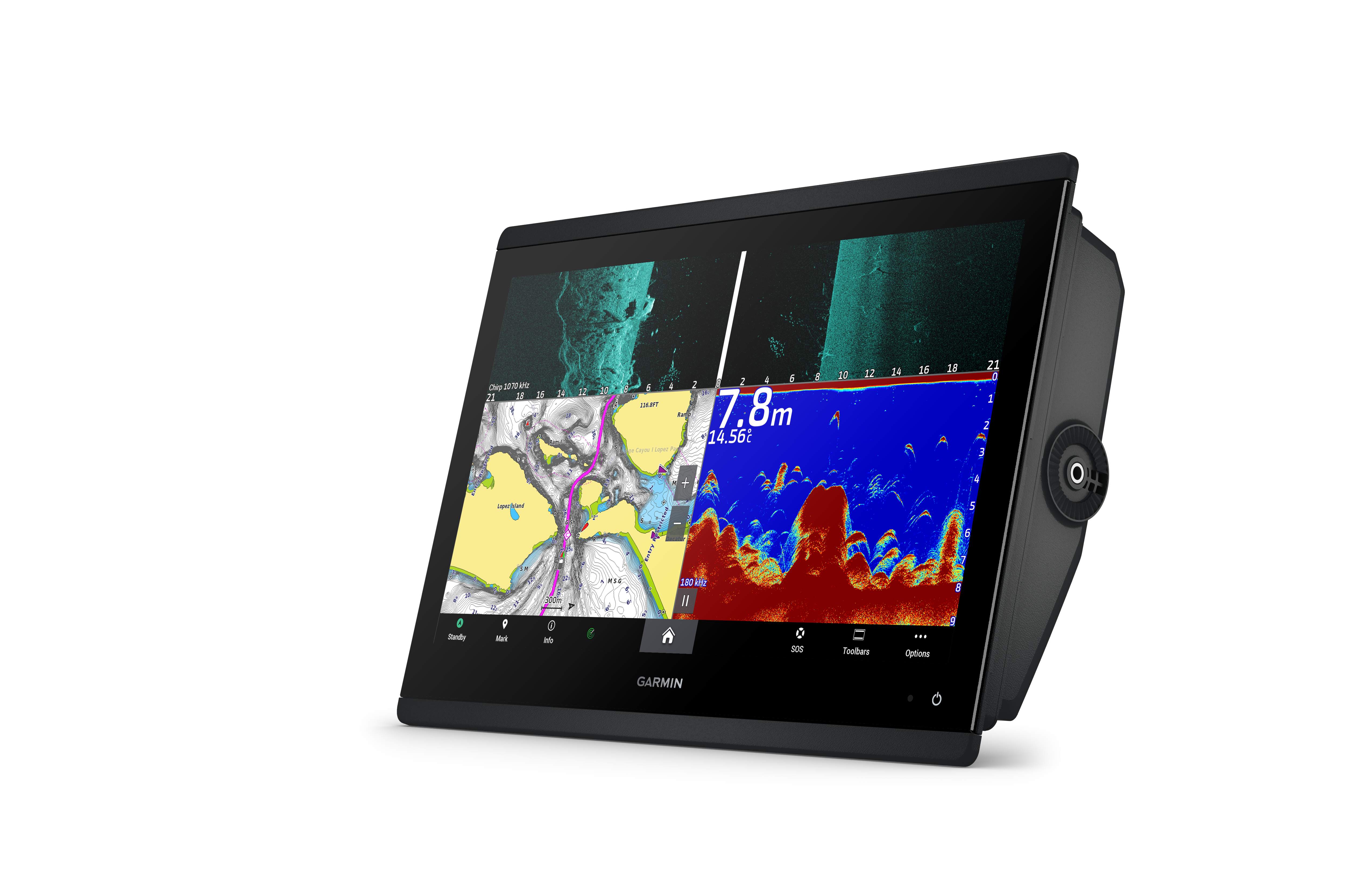

Get built-in ultra HD SideVü ™ and ClearVü ™ scanning sonar with vivid, high-contrast color palettes make it easier to distinguish fish from surroundings. The GPSMAP X3 series chartplotter also supports 1 kW traditional sonar capabilities. Built-in sonar compatibility is only available on xsv models.
PANOPTIX ™ SUPPORT SOUNDER

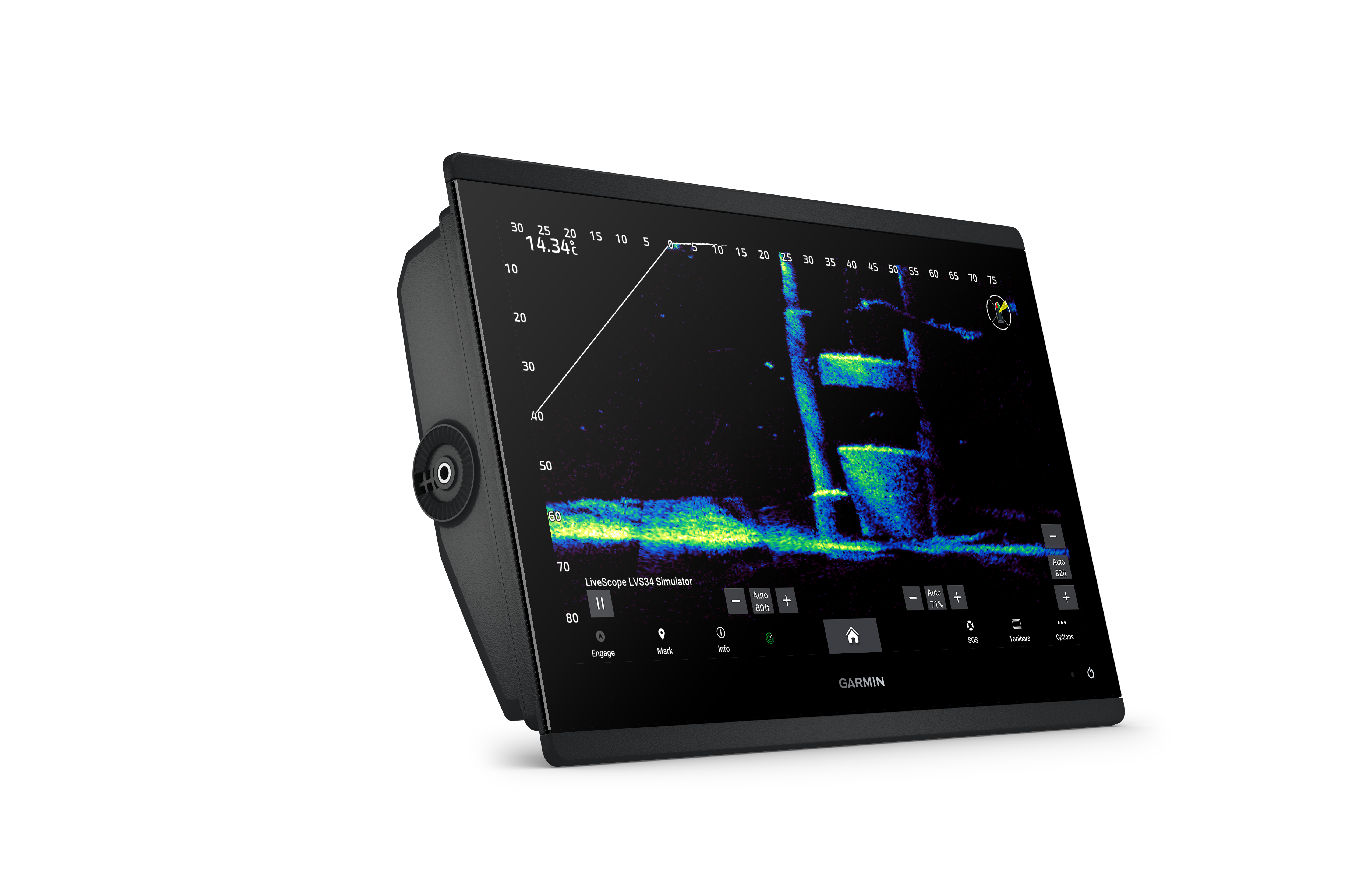

Pair with Panoptix ™ or LiveScope ™ easy to read live sonar (transducer required, sold separately) so you can see all around the boat in real time.
Made for your wheelhouse.
FASTER, SHARPER, SMARTER

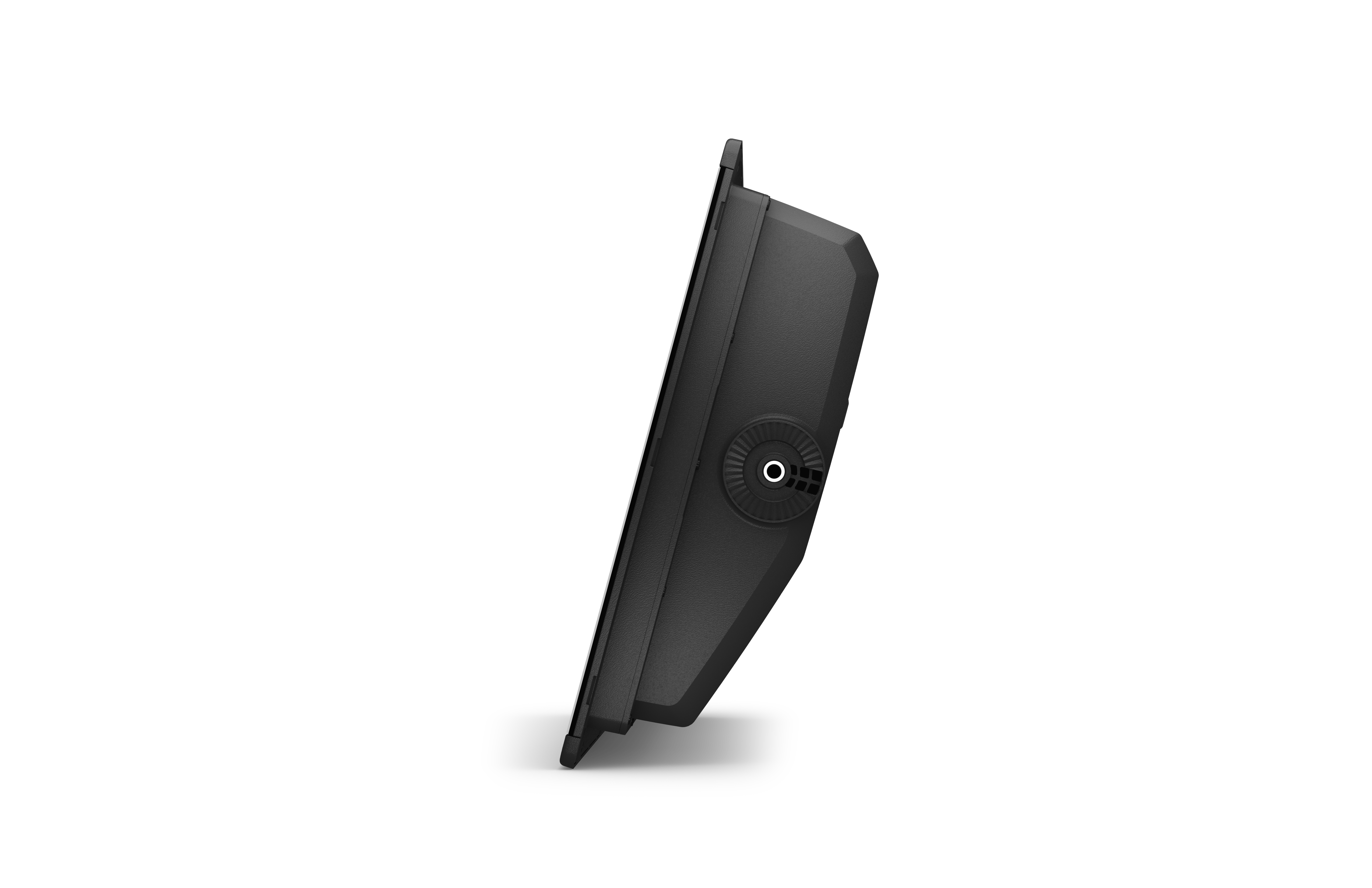

With the added processing power and slim design with edge-to-edge glass, this chartplotter is easy to fit into a wide variety of dashboard configurations.
CLEAR AND BRIGHT OPTICS
High resolution IPS screens for 9″, 12″ or 16″ chartplotters has improved readability in sunlight and visibility from all angles.
CHARTS AND MAPS

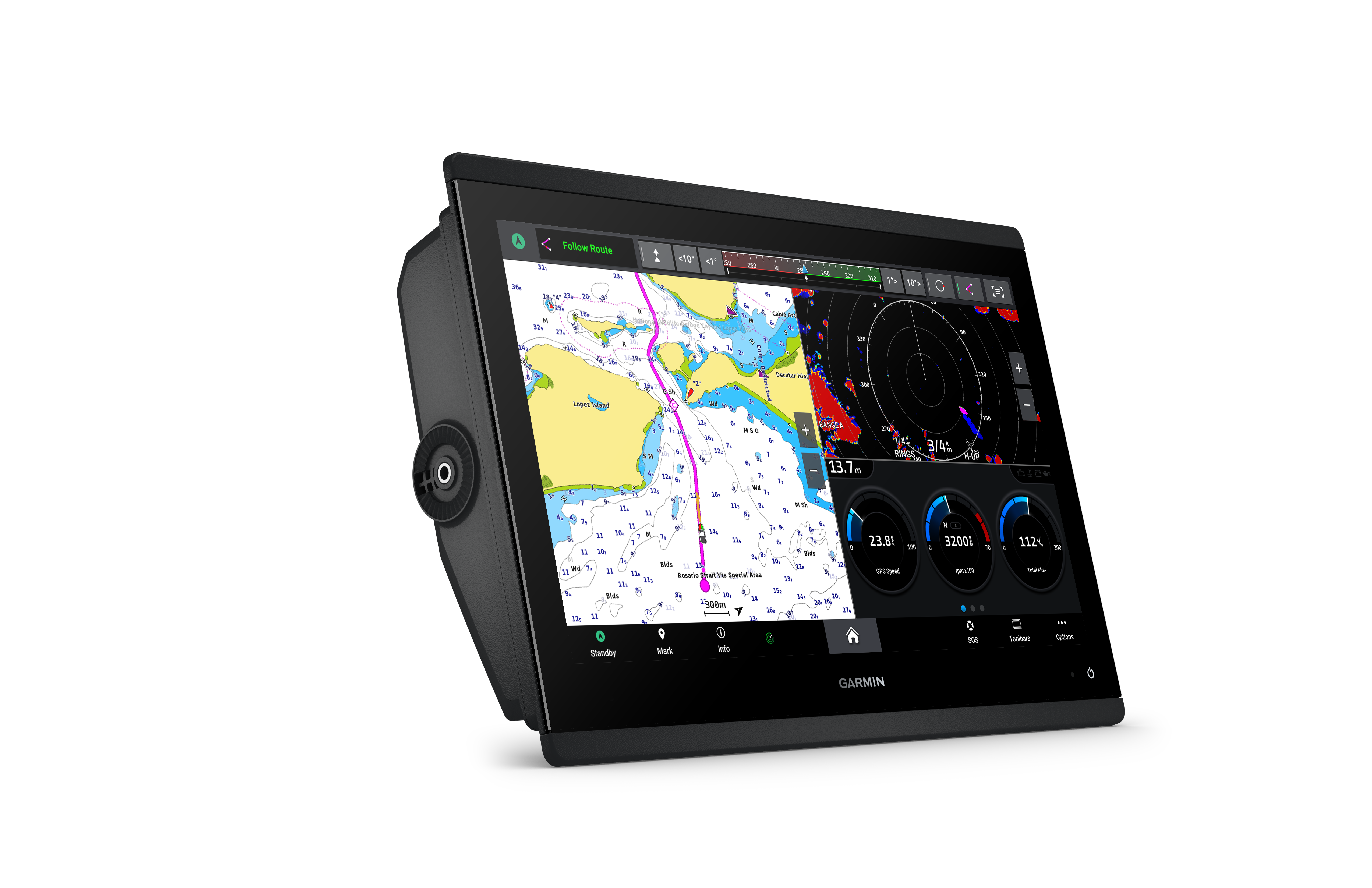

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+ ™ or premium Garmin Navionics Vision + ™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ ™ technology 1 and more. with more.
OPTIONAL RADAR BUNDLE
To help avoid weather and traffic on the water, the compact 4 kW GMR ™ 18 HD3 radar available as an option with your GPSMAP chartplotter/sounder package.
POWER-POLE ® LOW WATER ANCHOR
By creating networks between selected Garmin chartplotters with a Force ® electric motor and your compatible Power-Pole shallow water anchor system, you can access advanced boat control functions 3 from your chartplotter, including auto anchoring, smart anchor push, auto stow, anchor resistance detection and anchoring at the end of Auto Guidance 2 route. Spend more time fishing and less time positioning.
INTEGRATION OF ELECTRIC MOTOR
Get support and integration for your Force electric motor (sold separately) for full control while fishing.
CHARGE INTEGRATION FROM POWER-POLE
Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters, so the battery holds the water better and for longer. You can charge batteries on the go, monitor power consumption, choose where power is allocated, control emergency starting and even transfer power between battery banks - all from your chartplotter screen.
Sail and navigate with ease
GARMIN SAILASSIST ™ SAILING FUNCTIONS

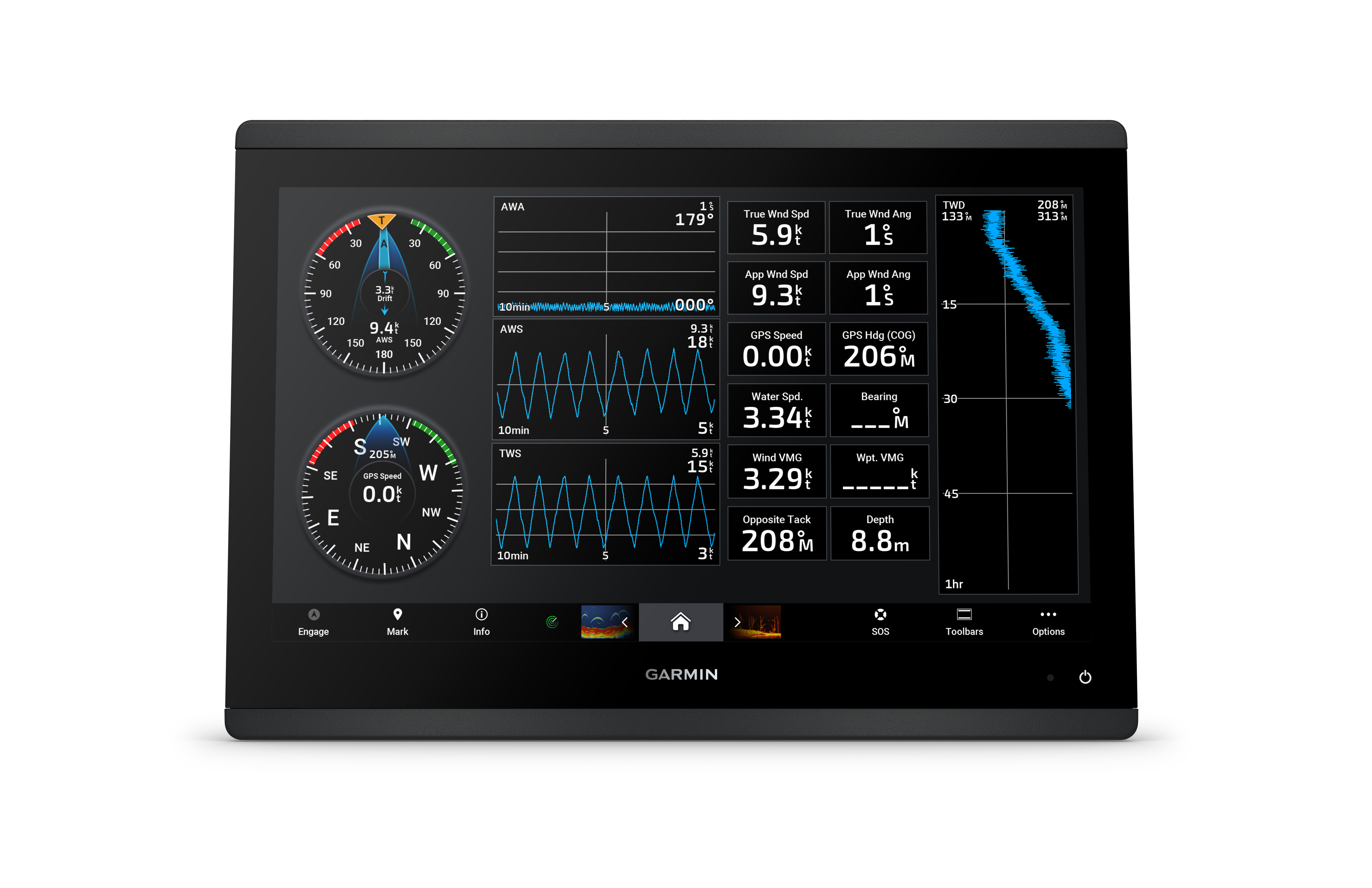

See laylines, starting line guide for racing, improved wind rose, lines for course and course over bottom, data fields with true wind data and slider for tide/current/time, wind direction, direction and drift, wind speed etc.
POLAR COORDINATE SYSTEMS FOR SAILING SHIP SAILING
Use the polar table to see important data, including how fast you should be sailing in a certain wind angle and speed, so you know if you need to adjust the sail trim.
GARMIN MARINE NETWORK
If you have several compatible Garmin devices on your boat, you can share information – such as maps, user data, radar and IP camera video – among them.
NMEA 2000® AND NMEA 0183 NETWORK
Connect to compatible autopilots, digital switching, weather, Fusion sound system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN ® APP
Built-in Wi-Fi ® connection is paired with the free all-in-one mobile app for access to OneChart ™ feature, smart notifications, software updates, Helm app, Garmin Quickdraw ™ Community data and more 1 .
INTEGRATED ANT ® TECHNOLOGY
Connect to some of your favorite devices such as quatix® marine watches, gWind ™ Wireless 2 transducers GNX ™ Wind marine instruments and wireless remote controls.
MOTOR CONNECTION
You can connect the chartplotter to different engines, including selected Yamaha ® motors.
ONEHELM FUNCTION
This function collects all actions and functions from selected third-party devices, e.g EmpireBus ™ digital switching, on one screen.
SEND INREACH ® DEVICE NOTICES
Pair yours inReach Pair your inReach satellite communication device 4 to your chartplotter and enter custom messages using the MFD's on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.
In general |
|
| PHYSICAL SIZE (BXHXD) | 38.4 x 26.2 x 7.6 cm (15.1″ x 10.3″ x 3.0″) |
|---|---|
| WEIGHT | 4.4 kg |
| WATER CLASSIFICATION | IPX7 |
| TOUCH SCREEN | ✔ |
| DISPLAY TYPE | FHD, IPS |
| DISPLAY SIZE, BXH | 2.53 x 19.5 cm 39.7 cm diagonal (13.6″ x 7.7″, 15.6″ diagonal) |
| DISPLAY RESOLUTION, BXH | 1920 x 1080 pixels |
| ASSEMBLY OPTIONS | Bracket, flush or recessed (Garmin does not provide hardware or accessories for flush or bracket mounting. Professional tools and knowledge required.) |
| ADDITIONAL BUTTON OPERATION | Touch screen |
Card and memory |
|
| ACCEPTS DATA CARD | 2 microSD cards (back of device) |
|---|---|
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| RUNNING PATHS | 50 saved tracks |
| ROUTES | 100 |
Sensors |
|
| GPS | ✔ |
|---|---|
| GLONASS | ✔ |
| GALILEO | ✔ |
| HAS A BUILT-IN RECEIVER | ✔ |
| RECEIVER | 10 Hz |
| COMPATIBLE WITH NMEA 2000 ® | ✔ |
| NMEA 0183 COMPATIBLE | ✔ |
| SUPPORTS WAAS | ✔ |
Built-in maps |
|
| TIDE TABLES | ✔ |
|---|---|
Optional map support |
|
| GARMIN NAVIONICS+ ™ | ✔ |
|---|---|
| GARMIN NAVIONICS VISION+ ™ | ✔ |
| TOP 100K | ✔ |
| STANDARD MAPPING | ✔ |
| GARMIN QUICKDRAW CONTOURS | ✔ |
| Raster MAP SUPPORT | ✔ |
Plotter functions |
|
| COMPATIBLE WITH GARMIN SMARTMODE (CUSTOMIZABLE SCREEN PRESETS) | ✔ |
|---|---|
| SUPPORTS AIS (TRACKS TARGET SHIP'S POSITION) | ✔ |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC VHF RADIO) | ✔ |
| SUPPORTS FUSION-LINK ™ COMPATIBLE RADIOS | ✔ |
| SUPPORTS GSD ™ BLACK BOX SOUNDER | ✔ |
| SUPPORTS GCV ™ BLACK BOX SOUNDER | ✔ |
| COMPATIBLE WITH ACTIVECAPTAIN | ✔ |
| COMPATIBLE WITH GRID ™ (GARMIN REMOTE INPUT DEVICE) | ✔ |
| WIRELESS REMOTE CONTROL | ✔ |
| SAILING FUNCTIONS | ✔ |
| SPOKE AUDIO ALARMS | ✔ |
| ONEHELM ™ SUPPORT | ✔ |
Electric |
|
| POWER SUPPLY | 10 to 32 Vdc |
|---|---|
| TYPICAL POWER CONSUMPTION AT 12 V DC | 2.90 A |
| MAXIMUM POWER CONSUMPTION AT 12 V DC | 3.73 A |
| MAXIMUM POWER CONSUMPTION AT 10 V DC | 46.0W |
Sonar features and specifications |
|
| DISPLAYS SOUNDER | ✔ |
|---|---|
| OUTPUT EFFECT | 1 kW |
| TRADITIONAL SOUNDER (DUAL FREQUENCY/BEAM) | Built-in (1-channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | Built-in 260/455/800/1000/1200 kHz |
| SIDE VIEW | Built-in 260/455/800/1000/1200 kHz |
| PANOPTIX ™ SONAR | ✔ |
| LIVESCOPE | ✔ |
Connections |
|
| NMEA 2000® GATES | 1 |
|---|---|
| NMEA 0183 ENTRY PORTS | 1 |
| NMEA 0183 INPUT PORTS (TX) | 1 |
| VIDEO INPUT PORTS | 1 (BNC composite) |
| VIDEO OUTPUT PORTS | 1 HDMI |
| J1939 GATES | 1 |
| GARMIN MARINE NETWORK™ PORTS | 2 |
| 12-PIN TRANSDUCER PORTS | 1 |
| USB PORTS | ✔ |
| BLUETOOTH ® CALL | ✔ |
| ANT+ ™ (CONNECTION) | ✔ |
| GARMIN WI-FI ® NETWORK (LOCAL CONNECTION) | ✔ |
In the box:
- GPSMAP® 1623xsv chart plotter
- microSD ™ card is pre-installed
- Power cable
- Flat mounting kit with gasket
- Protective cover
- Front frame
- Backbone/drop cable (2 meters) and T-connector for NMEA 2000 ® the network
- Documentation
Estimated availability is 5 – 8 weeks.
Garmin
