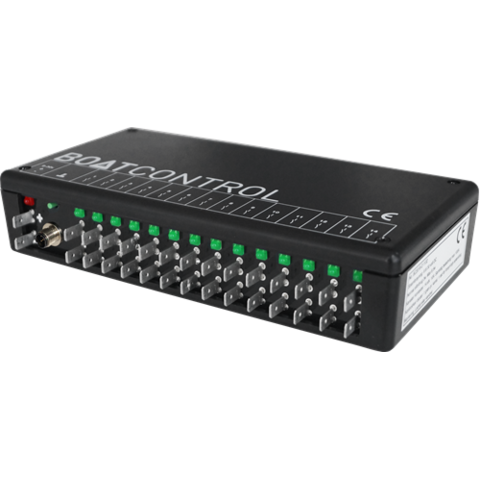

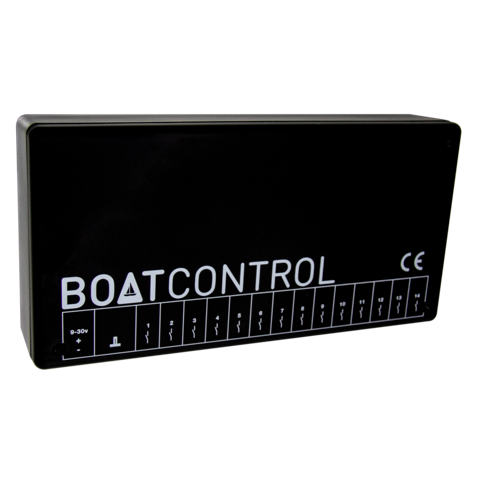

BoatControl is the newest initiative in the EPT collaboration.
BoatControl is not only an app to see the battery capacity of your EPT batteries, but also a remote control for your charger.
In addition, it gives you shore current control, 10 additional switches of your choice and NMEA 2000 interface for your boat data.
We recommend that the box is installed together with the boat's current electrical panel.
Once this is done, you can control your contacts directly via phone/tablet with the Boatcontrol APP.
If you choose to connect the box to the internet via Wi-Fi, you can always just open the app and manage your contacts no matter where you are.
Technical specifications:
L x W x H:
220 x 116 x 46 mm.
Connection:
6.3 mm cable lug, NMEA2000, Wifi and Bluetooth.
Power supply:
9 to 30 volts DC.
Normal electricity consumption:
3w Max 6.5w
Channels/contacts:
14 pieces 10A, simultaneous load max 100A
Control lights/diodes:
1 green per channel, 1 red for supply voltage.
Manual contact:
1 press switch.
Assembly:
Vertical or horizontal.
