Description
SERIOUS FISHERMEN, CRUISERS, SAILORS AND RACERS NEED PROFESSIONAL EQUIPMENT

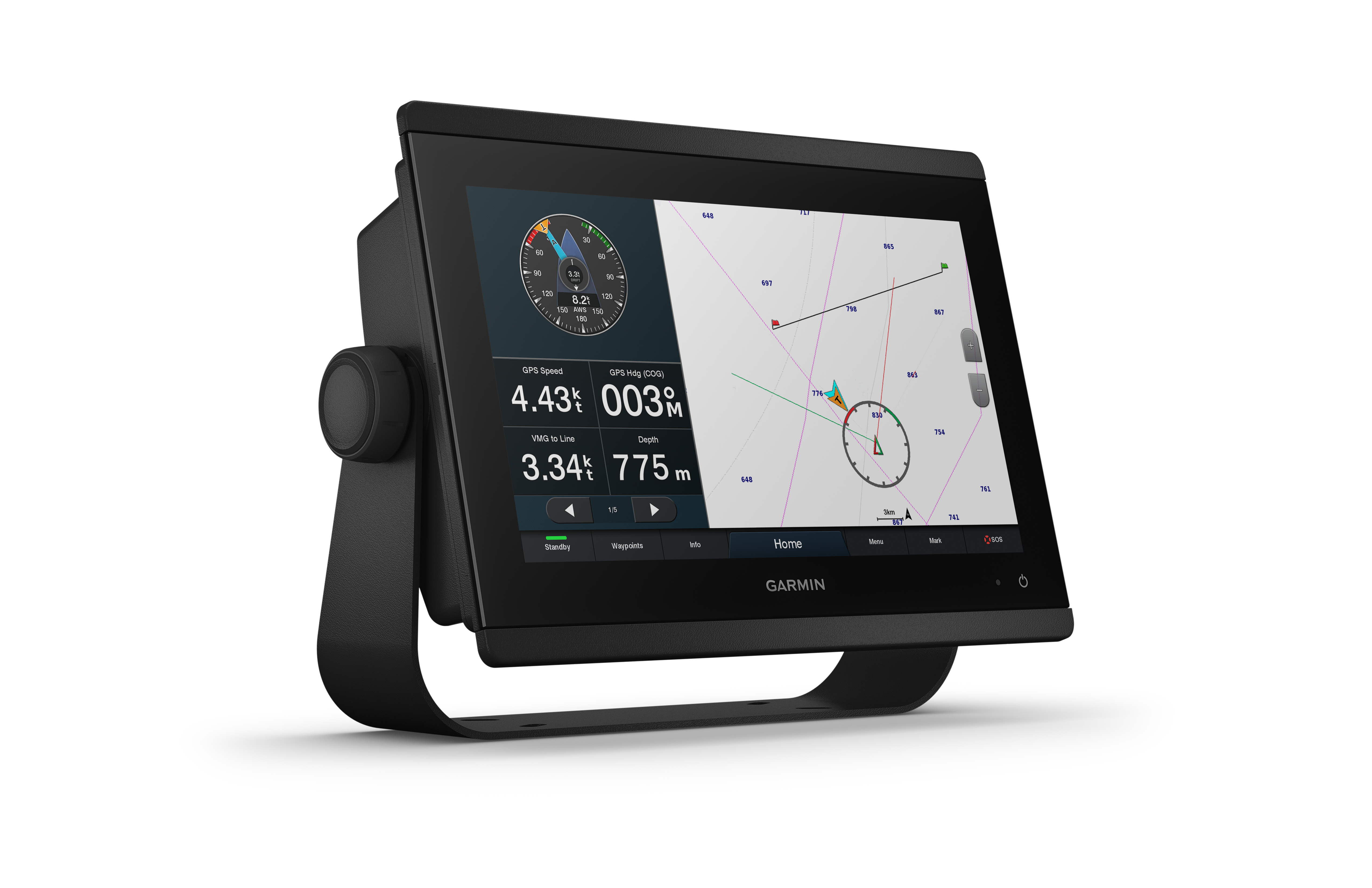

The combined chartplotter/sounder package is user-friendly, easy to install and provides MFD performance in a handy combo package.
Get wider viewing angles and superior image sharpness on the touchscreen with an IPS (Full HD In-Plane Switching) display.
Navigate confidently with the built-in Garmin Navionics+™ inland and coastal mapping 1 .
You can easily build your marine system using the best network connection.
See below and around your boat with built-in sonar capabilities (transducers sold separately)
From respectively ANT ® technology for Wi-Fi ® networks, there are countless ways to connect to your system.
With SmartMode™ station control buttons, everything is designed to give you quick, one-touch access to the information you need.
Made for your wheelhouse.
HD IPS TOUCHSCREEN
Available in 10″, 12″ and 16″, this screen offers wider viewing angles, premium image sharpness and sunlight readability, even with polarized sunglasses.
SIMPLE, ATTRACTIVE MOUNTING OPTIONS

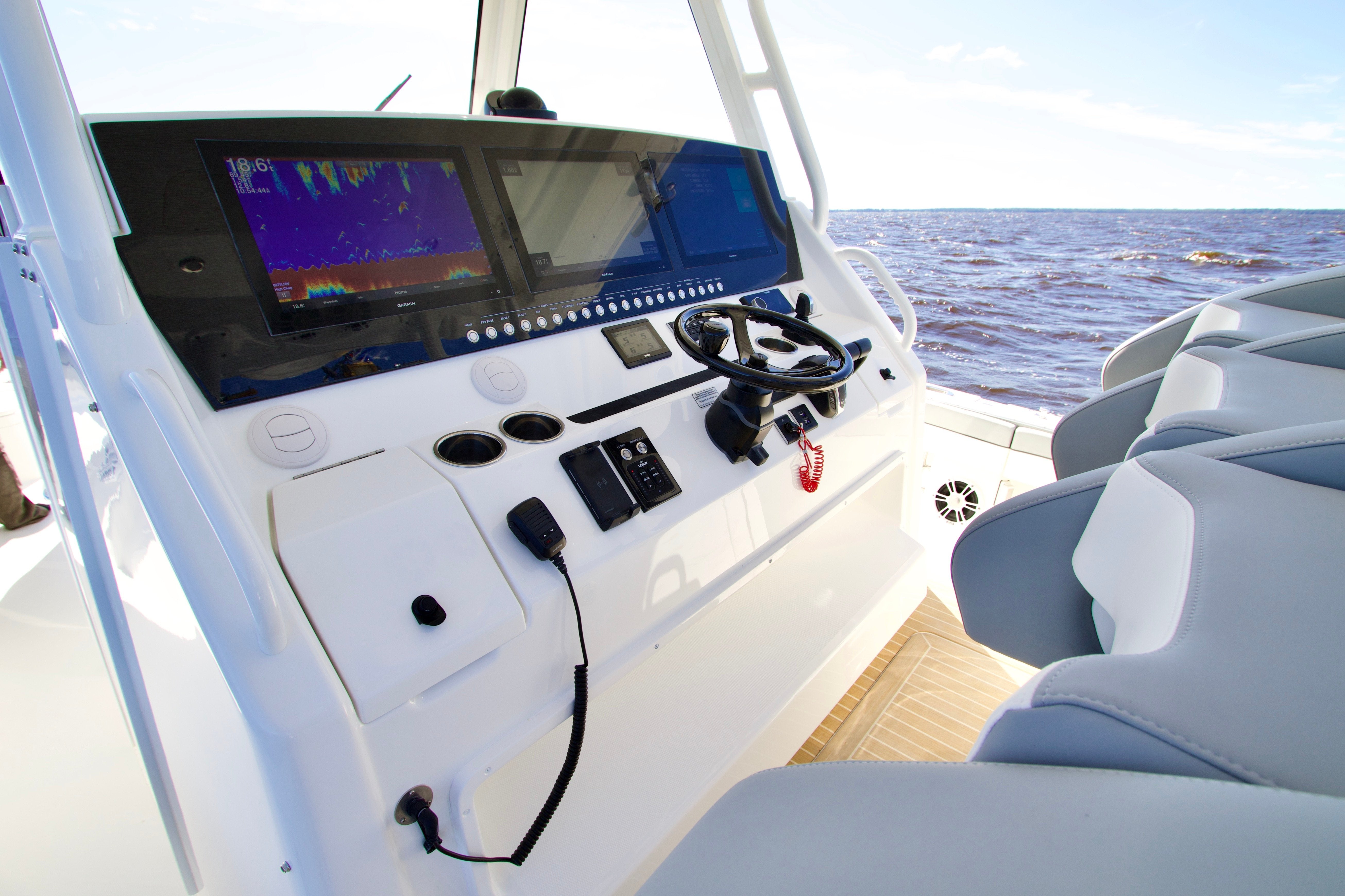

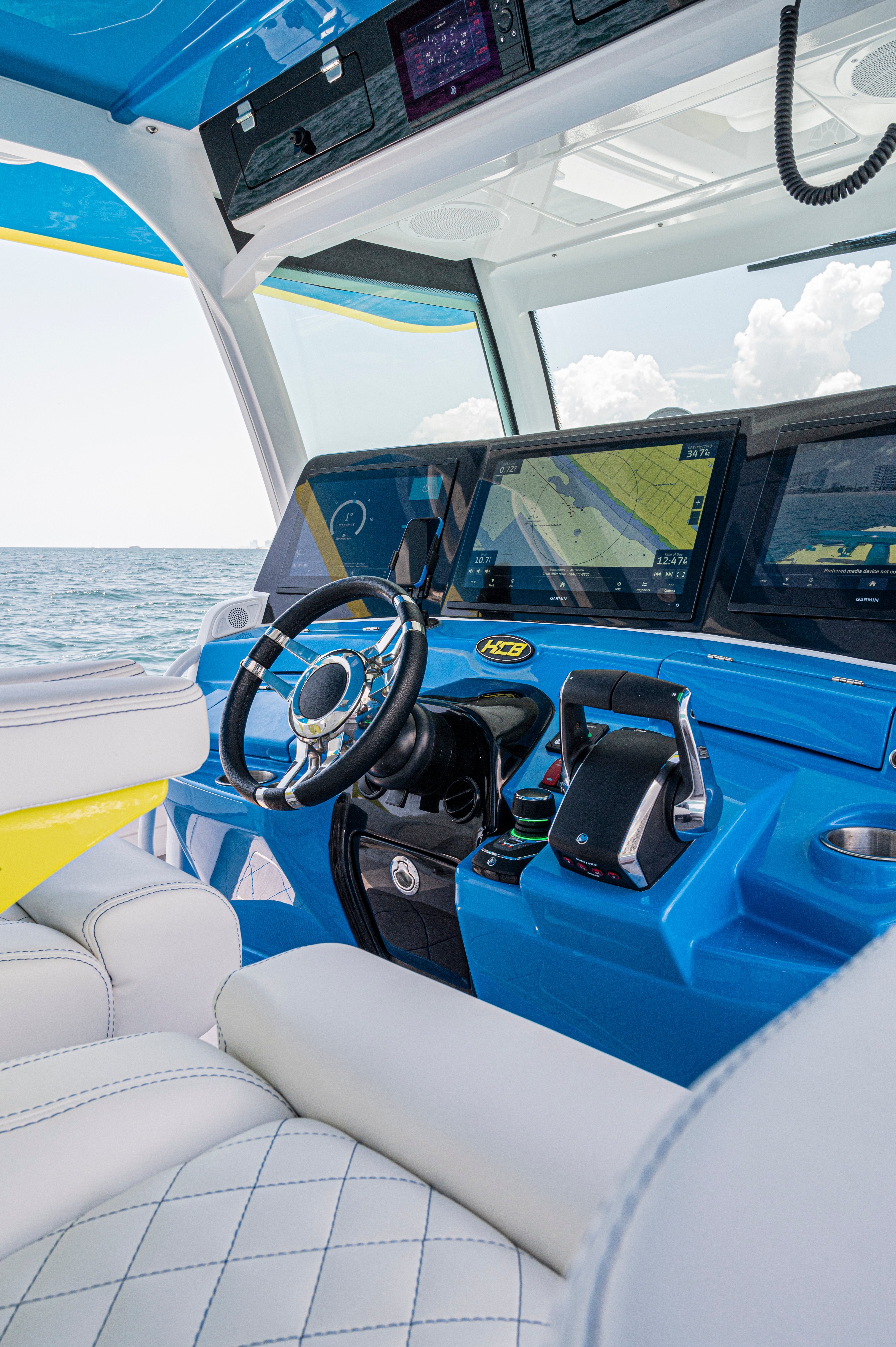

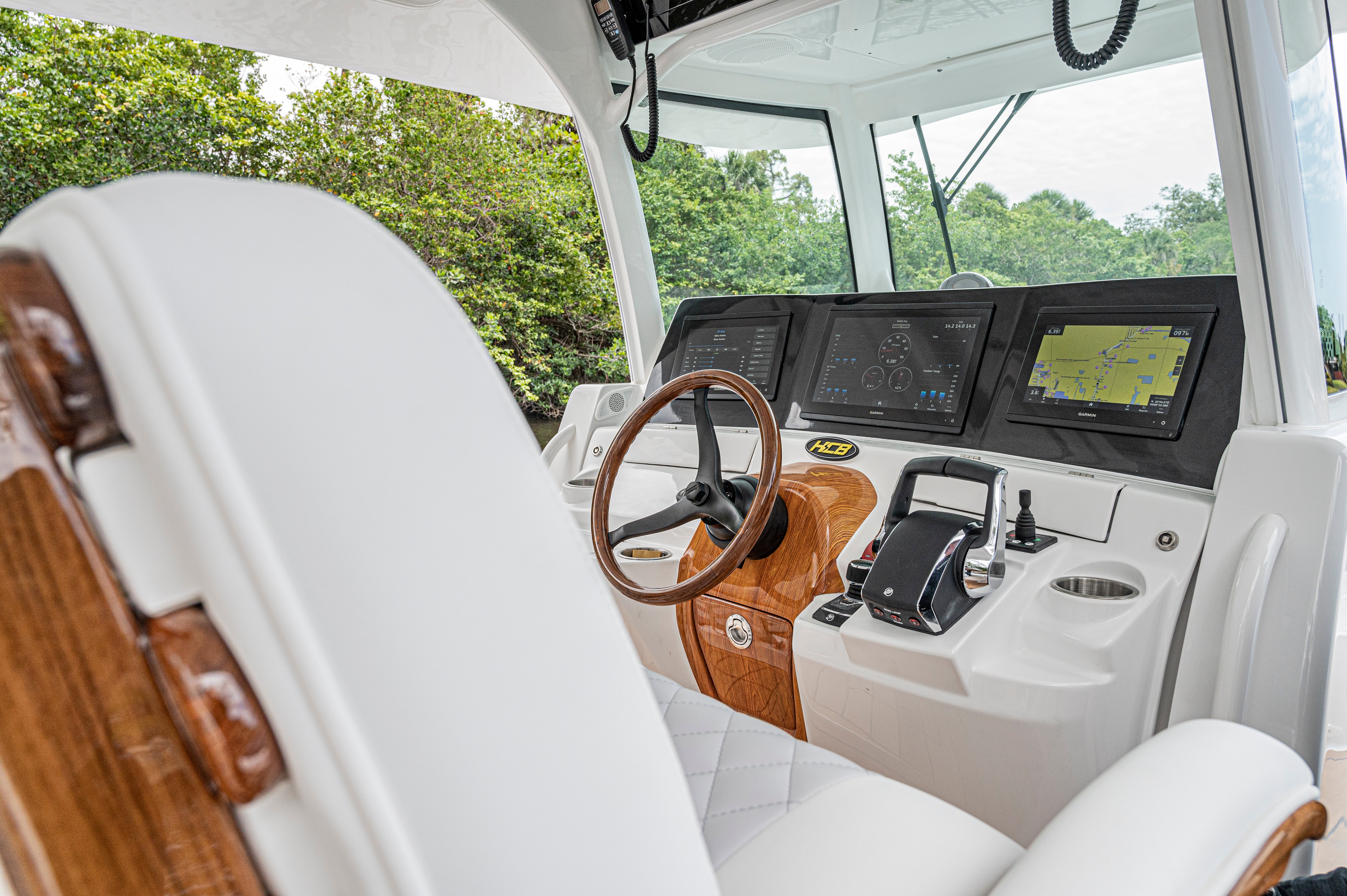

You can install several screens, either surface-mounted side by side, which provides an elegant control space with a glass look, or flush-mounted - which creates a breathtaking control space.
GRID™ 20 REMOTE CONTROL
The optional easy-to-use GRID 20 Remote Loader provides intuitive remote access and control of the entire Garmin marine system.
See the world below you.
SUPPORT FOR TRADITIONAL SOUND AND SCANNING SOUND
Get built-in support for 1 kW two-channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonar to see up to 1,000 feet below and around the boat at 260 kHz (requires transducer, sold separately). Built-in sonar compatibility only available on xsv models.
SUPPORT FOR PANOPTIX™ SOUNDER
Pair your chartplotter with the Panoptix or Panoptix LiveScope™ easy-to-read sonar (transducer sold separately) so you can see all around the boat in real time.
Sail and navigate with ease
GARMIN SAILASSIST™ SAILING FEATURES
See laylines, starting line guide for racing, improved wind rose, lines for course and course over bottom, data fields with true wind data and slider for tide/current/time, wind direction, direction and drift, wind speed etc.
CHART
Give your chartplotter a fresh new look and feel with optional Garmin Navionics+™ or premium Garmin Navionics Vision™ cartography with integrated coastal/inland content, access daily updates, Auto Guidance+™ technology 2 and more.
POLAR COORDINATE SYSTEMS FOR SAILING SHIP SAILING
Use the polar coordinate system to see important data, including how fast you should be sailing in a given wind angle and speed — so you know if you need to adjust your sail trim.
Connect to everything on your boat
GARMIN MARINE NETWORK
If you have several Garmin devices on your boat, you can share information – for example charts, user data, radar and IP cameras – between them.
NMEA 2000® AND NMEA 0183 NETWORK
Connect to autopilots, digital switching, weather, your FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
Activecaptain® App
Built-in Wi-Fi ® connectivity pairs with the free all-in-one mobile app to access OneChart™ functionality, smart notifications 3 , software updates, Helm, Garmin Quickdraw™ Community data and more.
INTEGRATED BLUETOOTH ® AND OTHER TECHNOLOGIES
Connect to some of your favorite devices, e.g. quatix ® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
ONEHELM™
This feature brings together all actions and functions from third-party devices, such as EmpirBus™ digital switching, on one screen.
SMARTMODE STATION CONTROL BUTTONS
Quickly access the information needed to ease stressful situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.
POWER-POLE ® SHALLOW WATER ANCHOR
By networking select Garmin chartplotters with a Force ® electric motor and your compatible Power-Pole shallow water anchor system, you can access advanced boat management features 6 from your chartplotter, including auto-anchor, smart anchor push, auto stow, anchor resistance detection and anchor at the end of Auto Guidance 2 route. Spend more time fishing and less time positioning.
CHARGE INTEGRATION FROM POWER-POLE
Your CHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters, so the battery holds the water better and for longer. You can charge batteries on the go, monitor power consumption, choose where power is allocated, control emergency starting and even transfer power between battery banks - all from your chartplotter screen.
SEND INREACH ® DEVICE NOTIFICATIONS
Pair your inReach Satellite Communication Unit 5 to your chartplotter and enter custom messages using the MFD's on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.
Learn more about the free all-in-one ActiveCaptain® app.
