Racegeek d10 is the intelligent multi-display with low power consumption for demanding racers who want optimal race information in a robust, easy-to-read display. The innovative Racegeek D10 display is made to provide all essential information in one place in an easily understood form.

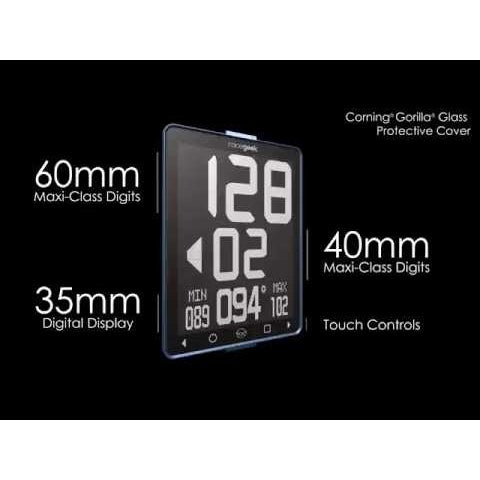

Screen:
60mm and 40mm LCD digits
35 mm graphic display
Shatterproof Gorilla® glass
Touch sensitive buttons
White and red light
Compass:
1 degree accuracy
100 Hz
9 axis gyro / accelerometer / magnetometer
Memory:
64 MB built-in memory
Logs the day's sailing 10 times a second
WiFi:
Built-in WiFi Access Point
4 channels:
NMEA0183
SignalK Delta

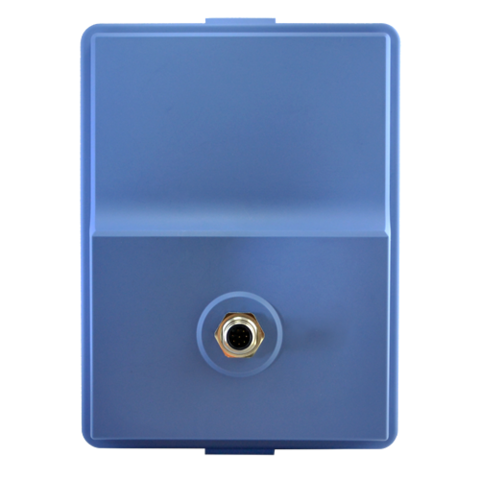

Connection:
2 x standard NMEA0183 inputs via RS232

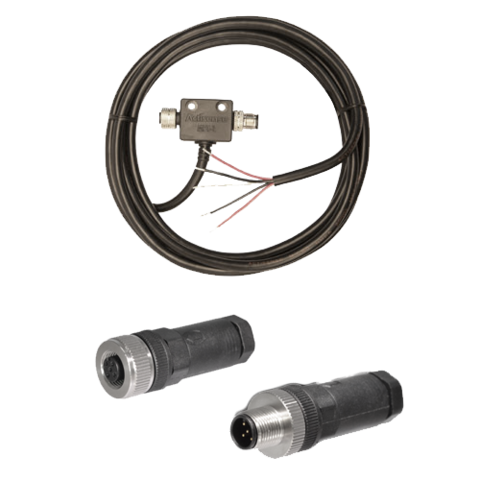

1x 115k RS232 connection for connecting NMEA2000 backbone with Actisense NGW-1 Signet log connection
Race Processor:
85Mhz modular hardware programmable processor
Settings:
The D10 has three auto modes and a custom setting that can be configured to display the desired information.

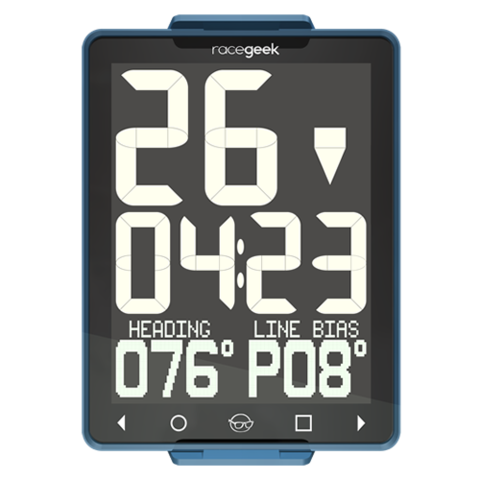

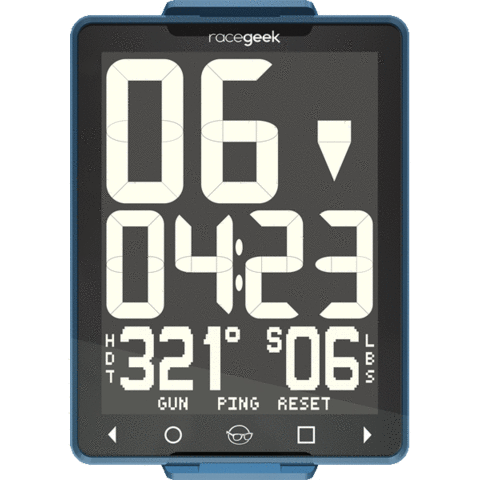

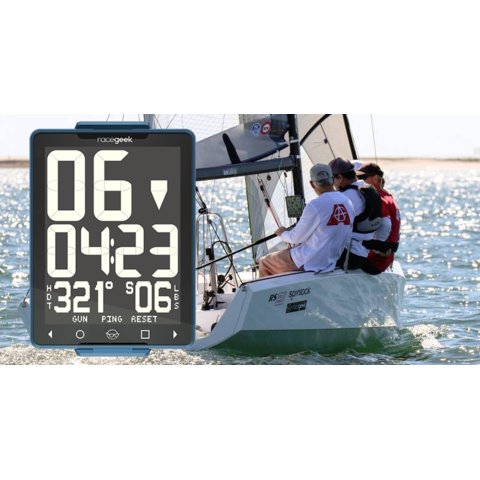

Start Mode:
In start mode d10 shows:
Distance to starting line
Countdown
Starting line advantage
Boat speed
The display turns red when there is no more start time.
Upwind:
In upwind mode the d10 displays:
Boat speed
Price
Wind phase
Hit the mark
The display turns red when the boat speed is below 95% of desired.
Downwind:
In downwind mode the d10 displays:
Boat speed
Apparent wind angle
Course to mark
Course over ground
The display turns red when the boat speed is below 95% of desired.
Powerful:
D10 has strength to give out:
True wind angle
Calibrated speed
Distance to line
Cross optimization
Start advantage on line
Built-in Functionality
GPS
Compass
Pitch, Roll, Heel
Shift Tracking
Average Wind Angle
Line Bias
...and more
Calibrated Boatspeed (SOG)
Course (COG)
Distance To Line
Turn (Angle to Mark)
Waypoints
Laylines
Start Timer
...and more
Data Logging at 10hz

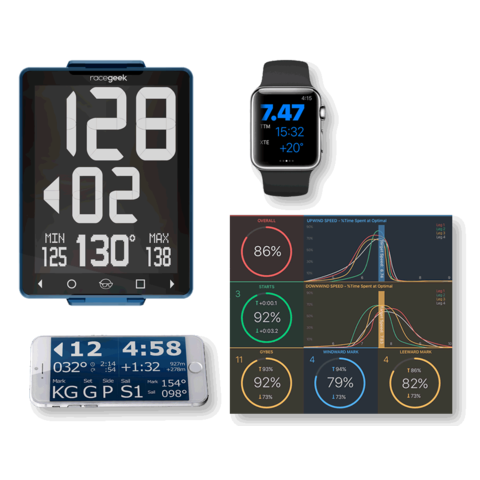

WiFi connectivity for NMEA and smart devices
Direct connection for analog and 0183 devices
Display up to 4 custom NMEA elements

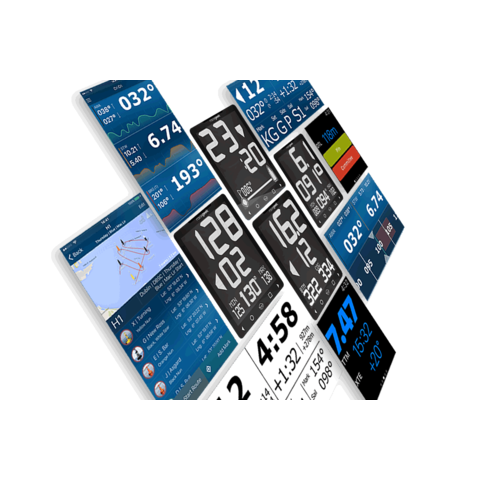

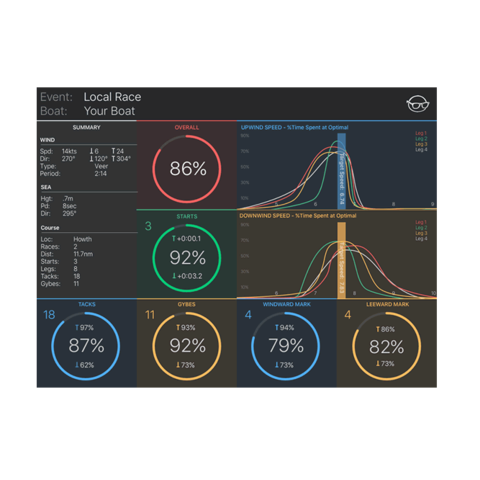

...Analytics (Included)
Uploads all race data to cloud storage
Free access to BETA program for analytics
