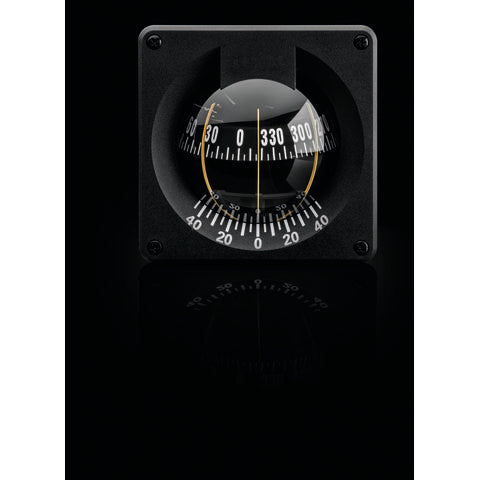

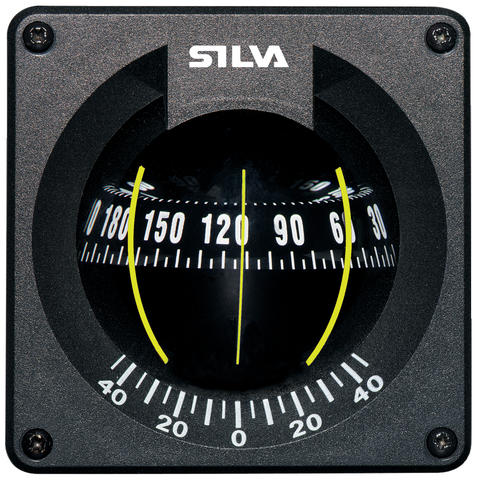

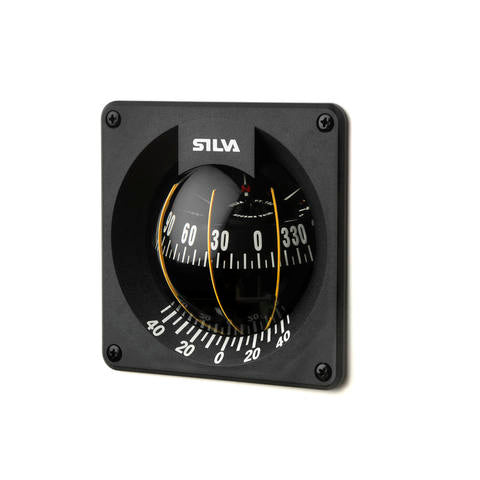

The Silva 100B/H is a bulkhead mounted compass designed for sailboats and sailors who require absolute accuracy and a stable compass rose in all conditions and heeling angles.

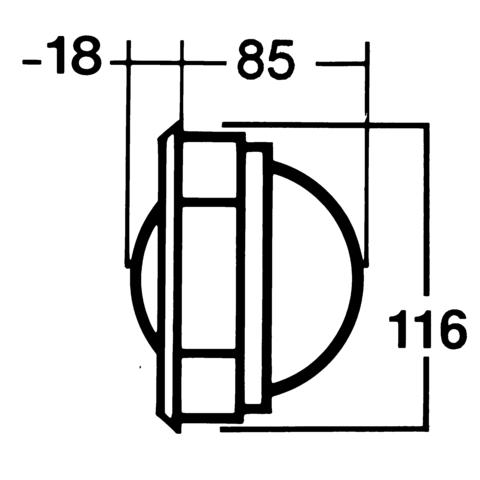

The compass dome protrudes only 18 mm from the bulkhead. The compass is equipped with an inclinometer, lighting and the possibility to compensate for magnetic disturbance.
SPECIFICATIONS:
ARTICLE NUMBER
Silva: 37183-0011 / Scanmarine: SV-100BH
ACCURACY
± 0.5° (8.9 mils)
APPARENT CARD DIAMETER
100mm
BUILT-IN COMPENSATOR
Optional
COMPATIBILITY
Sailboats

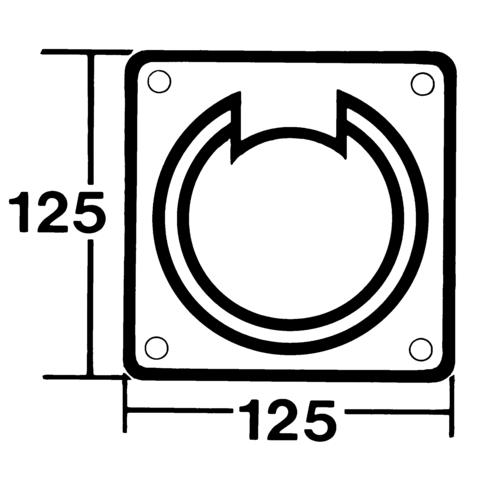

DIMENSIONS
85x125x125mm
GIMBALLED CRADLE
Yes
HEELING ANGLE
Roll: 45° Pitch: 30°
HEELING ANGLE SCALE
Yes
ILLUMINATION
12V., Ed
LUBBER LINES
Center and 2x side view at 45°
MATERIAL
ABS, Acrylic
MEMORY RING
No
TEMPERATURE OPERATING RANGE
-10°C to +70°C
VARIANT
Magnetic Equator, Magnetic South, Magnetic North
WEIGHT
910g
