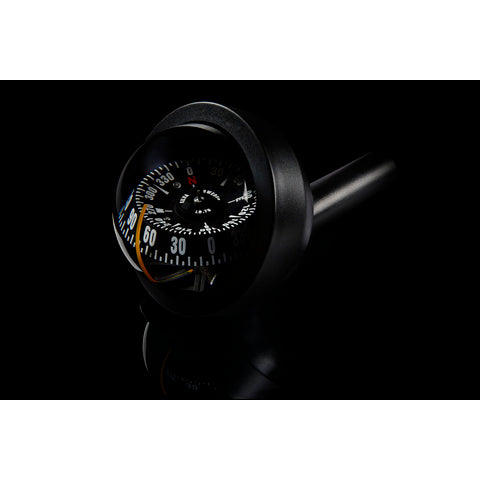

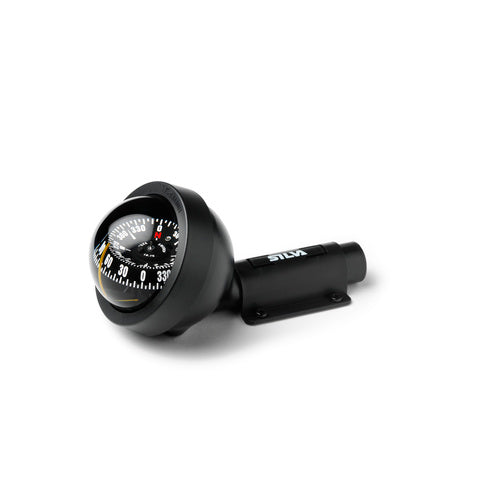

Silva 70UN is a universal compass that can be mounted at any angle on board. The compass can be taken out of the holder and used as a bearing compass, or taken home to avoid possible theft.360° white compass scale, 40° guide line. Fits all small boats, ideal as an extra compass.
With main compass scale on the horizontal part and for direct reading on the vertical edge.
The 70UN is ideal for boats with either a seated or a standing helmsman. The curved guide line enables quick and clear readings without errors. If the compass falls into the water - it floats!
Suitable for smaller boats, kayaks, dinghies, canoes and many more...
SPECIFICATIONS:
ARTICLE NUMBER:
Silva: 35014-9011 / Scanmarine: SV-70UN
ACCURACY
± 1° (17.8 mils)
APPARENT CARD DIAMETER
70mm (2.7 inches)
BUILT-IN COMPENSATOR
Optional
CARD TYPE
Cone
COMPATIBILITY
Kayaks, Powerboats, Sailboats, Universal

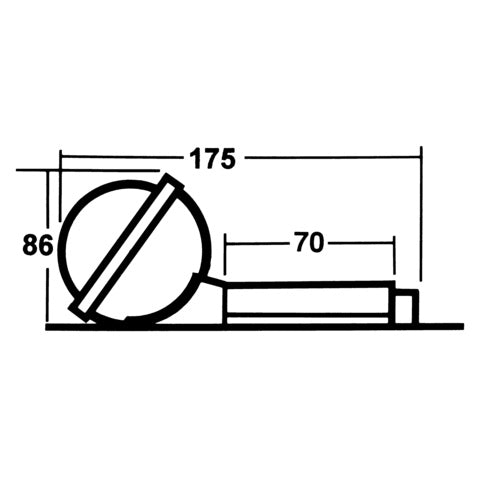

DIMENSIONS
86x175mm
GIMBALLED CRADLE
No
HEELING ANGLE
Roll: 30° Pitch: 360°
HEELING ANGLE SCALE
No
ILLUMINATION
No
MATERIAL
ABS, Acrylic
MEMORY RING
No
MOUNTING
Bracket, Handheld
MOUNTING ANGLE
Any
PROTECTIVE COVER
No
TEMPERATURE OPERATING RANGE
-10°C to +70°C
VARIANT
Magnetic Equator, Magnetic South, Magnetic North
WEIGHT
405g
