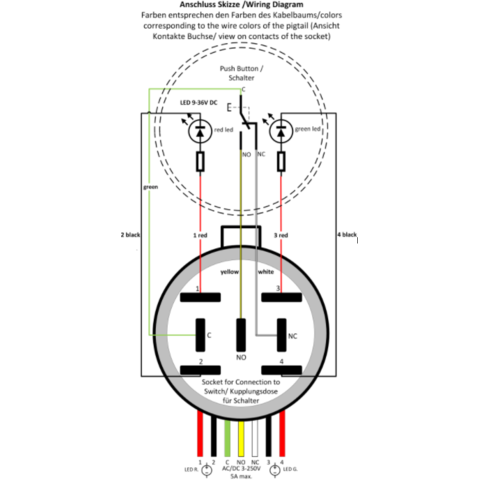

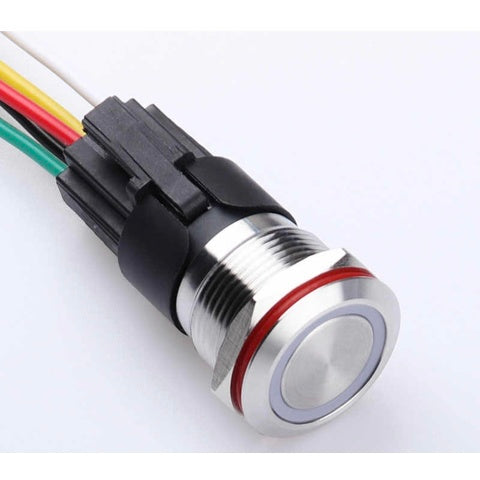

High-quality pressure switch with cable plug for easy installation made of stainless steel.

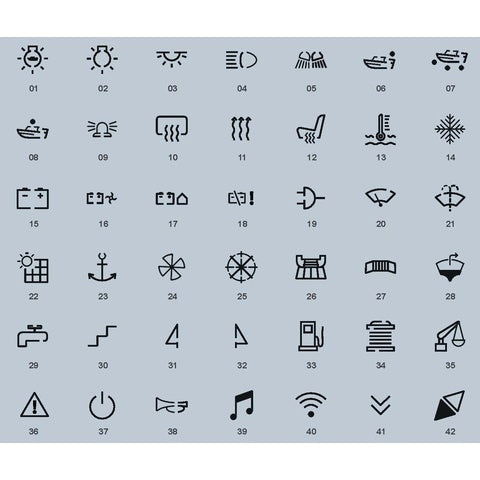

The contacts can be supplied with an icon for function as well as with a locking or momentary function.
Overview:
Waterproof IP 67.
Diameter: 22 mm
Max. Voltage: 250 VAC 50 VDC
Led voltage: 9-36 VDC
Max. Current: 5A
Single LED for contact lighting when active:
Colors: Red, Green, Blue, Orange, White
Double LED for contact lighting when active and sleep lighting when not active:
Colors: red and green, red and blue

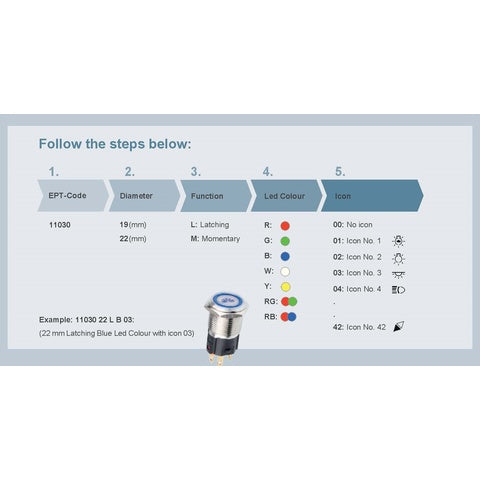

Available in 2 versions:
Locking or Momentary
