B258, gennembrudssensor i bronze til dybde (op til 650 m) og temperatur (kun DSM300)

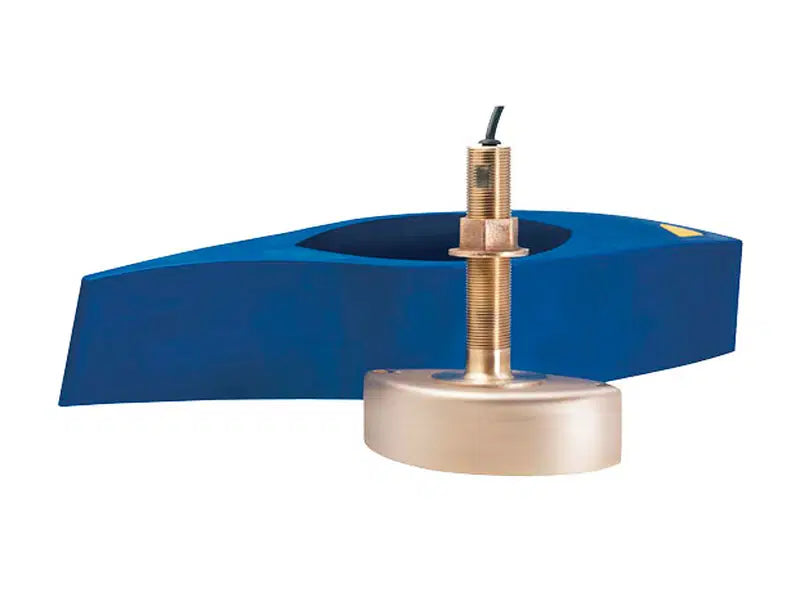

Raymarine B258 Thru Hull Transducer - Bronze High-Performance Thru-Hull Transducer w/ High Speed Fairing 1kW. Depth/Temp Transducer (a/c/e/eS Direct connect). Max Depth (Ft): L: 2,200 / H: 1,000. Frequency (KHz): 50 / 200. Cable Length (Ft/M): 30ft / 9m. E66082.
|
Description
|
Raymarine B258 Bronze High-Performance Thru-Hull Transducer w/ High Speed Fairing 1kW
|
|
Installation
|
Thru-Hull
|
|
Material
|
Bronze
|
|
Power (RMS)
|
1KW
|
|
Max Depth (Ft)
|
L: 2,200 / H: 1,000
|
|
Frequency (KHz)
|
50 / 200
|
|
Beam Width (L/H)
|
21°/5°
|
|
Records
|
Depth / Temperature
|
|
Approved Hull Material
|
Fiberglass / Wood
|
|
Cable Length (Ft/M)
|
30ft / 9m
|
|
Supported Deadrise / Transom Angles
|
0-26° Deadrise
|
