CV7-Windyplug Ultralyd vindsensor med Barometer til sejlbåde kombineret med WindyPlug-interface, der muliggør integration i et NMEA2000-netværk.
OVERVIEW

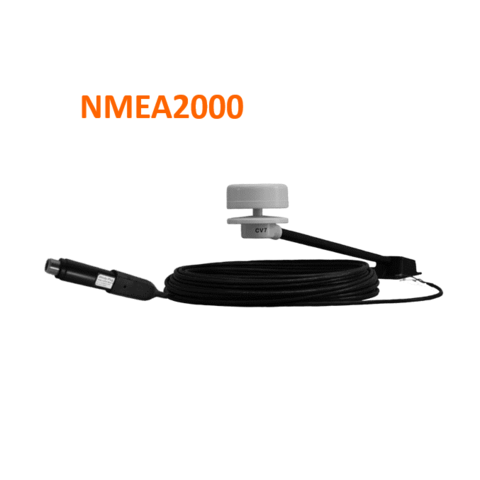

The CV7-WindyPlug pack includes a CV7 ultrasonic wind sensor combined with the WindyPlug.
The CV7 is an ultrasonic wind sensor designed for sailboats. This sensor is suitable for all mastheads. Thanks to its oblique arm, it is easy to install on mastheads that are already equipped with antennae and navigation lights.
This new generation measurement instrument provides wind module data in knots or meters per second, its relative direction in degrees and its temperature in degrees Celsius, on a normalised serial electric line.
Manufactured without mechanical parts, it is not subjected to wear. So, no spare parts are needed. Moreover, it is resistant to shocks, birds….
It is not affected by the gyroscopic effect and remains sensitive even to low wind. It compensates heel, and its small size limits windage. The built-in electronics are protected in a rugged housing.
The WindyPlug, that is combined with it, also includes a barometer. An interface enables it to connect the wind sensor to a NMEA2000 installation. It features a MICRO C male plug enabling direct connection to the NMEA 2000 bus.
Specifications:
Cabling:
4 wires:
– Red: +12 VDC (9-16 VDC, 9mA)
– Blue: 0V
– Yellow: NMEA0183® output +
– Green: NMEA0183® output –
Measurement range:
Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: -15°C (without icing) to +55°C
Measurement sensitivity:
Wind speed: 0.25 knots
Wind angle: +/-1°
Air temperature: +/- 1°C
WindyPlug:
Connector: MICRO male NMEA 2000
Protection rate: IP66 (WindyPlug connected)
Power supply: via NMEA2000®. 8V / 28VDC
Consumption: 1 LEN / < 40mA with sensor.
Operation indicator: 1 flashing LED
Pressure sensor: hydrophobic membrane
Pressure measurement range: 850 hPa / 1150 hPa
Resolution*:
0,1 hPa with NMEA2000 V3
Relative accuracy*: +/- 0.5 hPa at 20°C
Absolute accuracy*: +/- 1.5 hPa at 20°C
*1 hPa = 1 mbar = 0.003 inHg / 0 °C = 32 °F
Data:
NMEA2000 V3 PGNS:
-TX: 59904; 60928; 126464; 126996; 130306; 130312; 130314
– RX: 59392, 59904; 60928; 130315
Complies with the European CE standard
COMPATIBILITY:
– NMEA2000 V3 Standard
Tested and approved with the following devices: B&G, Furuno, Garmin, Humminbird, Lowrance, Raymarine, Simrad
– Navigation software connected to your NMEA2000 network: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, SeaPro,
In the box:
– CV7 sensor with 310 mm slanted arm
– Mounting Bracket
– 25 m cable – 4 X 0.22 mm²
– WindyPlug
– User and installation manual
– 2–year warranty, parts and labour in our premises
